Inspecting Servers

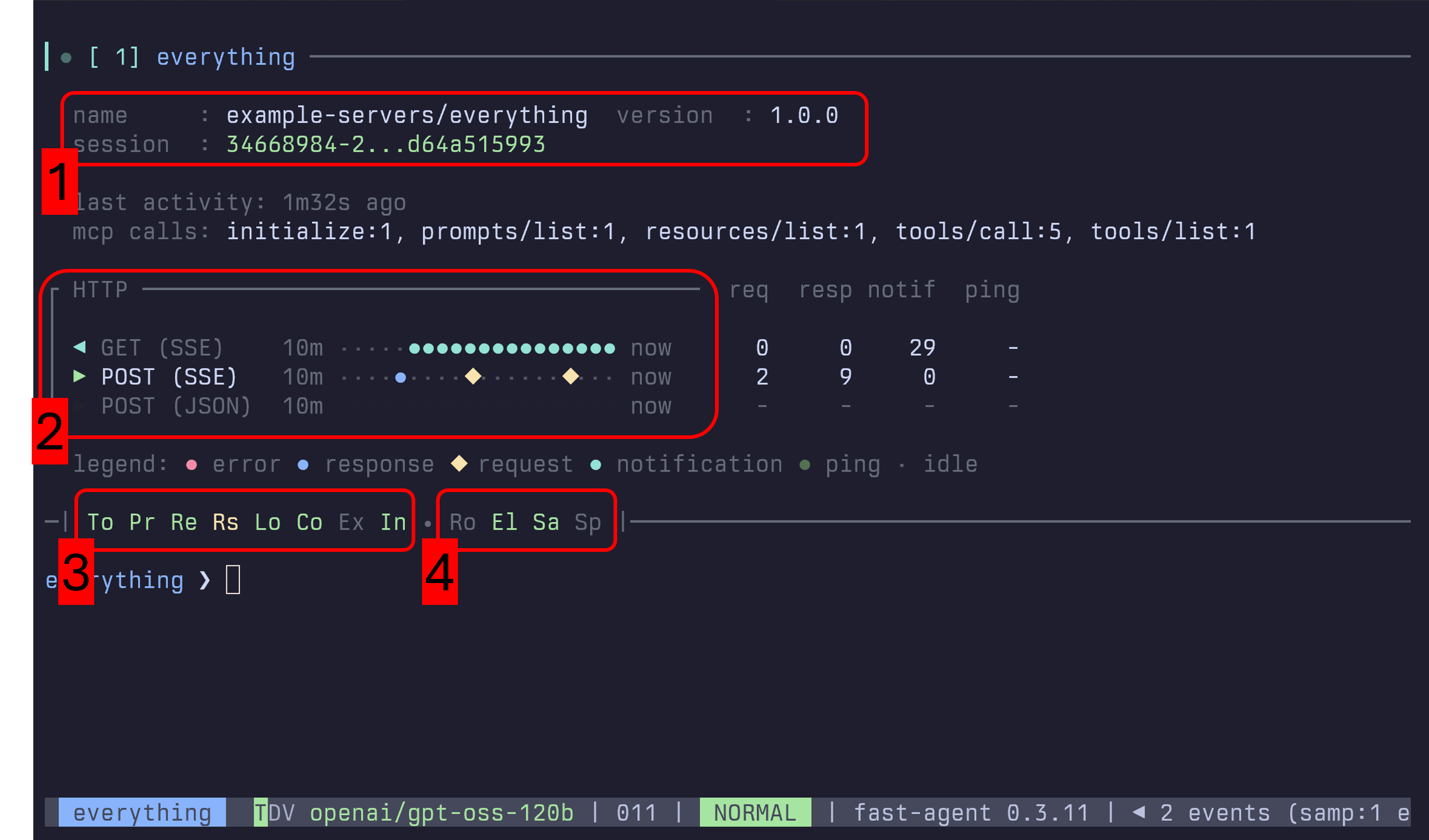

Detailed information about the MCP Server connection can be displayed with the /mcp command.

Section 1 - Implementation and Session

This section shows the MCP Server Implementation Details (Name and Version), along with any Mcp-Session-Id allocated by the MCP Server.

Section 2 - Transport Channel History

Shows activity from the Streamable HTTP GET and POST handlers for the MCP Server.

Section 3 - Server Capabilities

  • To, Pr, Re: Tools, Prompts and Resources. Green for available, Yellow for List Change notifications.
  • Rs: Resource Subscriptions.
  • Lo, Co: Logging and Completions.
  • Ex: Experimental Capabilities
  • In: Instructions. Green for available, and used - Yellow for available but not in Prompt, Red for available, but disabled.

Section 4 - Client Capabilities.

  • Ro: Roots offered to MCP Server.
  • El: Elicitation offered to MCP Server. Red for Cancel All mode.
  • Sa: Sampling offered to MCP Server. Green for auto, Yellow for manually configured.
  • Sp: MCP Client Name has been spoofed.

Configuration

The activity timeline shown in the transport section can be tailored in fastagent.config.yaml via the mcp_timeline block:

mcp_timeline:
  steps: 20         # number of buckets rendered on the timeline
  step_seconds: 30  # duration of each bucket (supports values like "45s" or "2m")

These values flow through to both fast-agent check and the in-session /mcp display. When multiple events occur in the same bucket, higher priority states replace lower ones using this order: error → disabled/request → response → notification/ping → none. This keeps significant events (such as errors and requests) visible even if a subsequent ping lands in the same interval.
